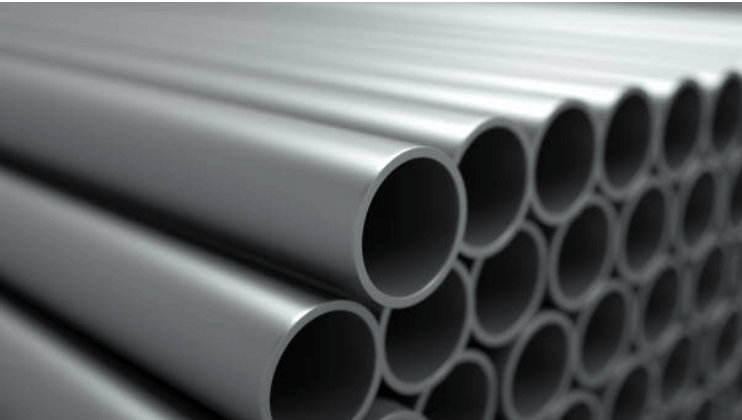

Hands-On: Best Practices for Handling and Installation of 304H Steel Tubing

Even the most carefully selected tubing can become a costly mistake if handled carelessly during the transport or installation process. Poor handling practices lead to surface damage, stress fractures, and premature failures that could have been easily prevented. When dealing with high-temperature applications, these mistakes become even more expensive and dangerous.
The superior properties of 304H stainless steel make it a popular choice for elevated temperature service applications, particularly in power generation and petrochemical facilities. This austenitic grade offers excellent creep strength and oxidation resistance at temperatures up to 1500°F. However, these valuable characteristics mean nothing if the material suffers damage during handling or gets installed incorrectly from the start.
Understanding Material Vulnerabilities Before Installation
Surface Contamination Risks: Stainless steel surfaces can pick up iron particles from carbon steel tools or work surfaces, leading to later. These contamination points often show up months after installation, creating expensive repair situations. Cross-contamination during fabrication shops represents one of the most overlooked failure modes in stainless systems.
Mechanical Damage Concerns: Dents and scratches might seem minor, but they create stress concentration points that can initiate cracking under thermal cycling. Sharp impacts can also disturb the grain structure near the surface, affecting long-term performance. Surface defects become magnified when the tubing experiences repeated heating and cooling cycles.
Safe Handling Techniques During Transport
Proper Lifting Methods: Always use fabric slings or padded lifting devices to avoid point loading on tube walls. Chain slings or wire rope can create permanent indentations that weaken the tubing structure. Support long lengths at multiple points to prevent sagging, which can cause oval distortion in thinner wall sections.
Storage Considerations: Keep tubing off the ground using wooden blocks or plastic supports to prevent moisture accumulation and contamination. Separate different grades with non-metallic spacers to avoid galvanic reactions during storage. Cover stored materials to protect from weather, but ensure adequate ventilation to prevent condensation buildup.
Critical Installation Parameters
Thermal Expansion Planning: Calculate expected movement for your operating temperature range and provide adequate expansion loops or bellows in the system design. Anchoring points must be strategically placed to control expansion direction while avoiding over-constraint. Remember that 304H expands approximately 0.1 inches per 10 feet of length for every 100°F temperature increase.
Joint Preparation Standards: Clean all surfaces thoroughly with stainless steel brushes or grinding wheels to remove any contamination before welding or mechanical connections. Check that fittings match the tubing grade exactly, as mixing different stainless grades can create galvanic corrosion problems. Pre-fit all connections before final installation to identify potential alignment issues.
Welding and Connection Best Practices
Weld Quality Control: Use only appropriate filler metals designed for 304H applications to maintain the material’s high-temperature properties. Back-purge all root passes with argon gas to prevent oxidation on the interior surface. Interpass temperature control becomes critical, as excessive heat input can cause carbide precipitation and reduce corrosion resistance.
Mechanical Connection Guidelines: When using threaded connections, apply anti-seize compounds compatible with stainless steel to prevent galling during assembly or future maintenance. Torque specifications should follow manufacturer recommendations, as over-tightening can distort thin-wall tubing. Consider using union-type fittings in locations where future disassembly might be required.
Installation Environment Considerations
Contamination Prevention During Installation: Establish clean work areas free from carbon steel grinding dust or other contaminants that could embed in the stainless surface. Use dedicated tools for stainless steel work to avoid cross-contamination from previous carbon steel projects. Cover completed sections during multi-day installations to protect from airborne particles.
Support and Restraint Systems: Design support systems that allow for thermal movement while maintaining proper alignment under operating loads. Avoid rigid clamping that prevents natural expansion and contraction cycles. Spring hangers or sliding supports work better than fixed restraints for long horizontal runs subject to temperature changes.
Common Installation Mistakes to Avoid
Several installation errors consistently appear in field applications and can be easily prevented with proper planning. These mistakes often create problems that don’t surface until the system reaches operating temperature:
- Never use carbon steel tools directly on stainless surfaces without proper protection or cleaning afterward.
- Avoid over-bending tubing beyond manufacturer specifications, as this can cause wall thinning and stress cracking.
- Don’t mix stainless grades within the same system without considering galvanic compatibility issues.
- Prevent water entrapment in low points of the system, which can lead to localized corrosion problems.
System Testing and Commissioning
Pressure Testing Protocols: Conduct hydrostatic tests using clean water or nitrogen, avoiding chlorinated water that can cause stress corrosion cracking. Test pressures should not exceed code requirements, as excessive pressure can cause permanent deformation. Document all test results and inspect for any signs of leakage or distortion.
Heat-Up Procedures: Gradual temperature increases allow the system to expand naturally without creating excessive stresses at restraint points. Monitor expansion joint movement and support performance during initial heat-up cycles. Any binding or unexpected movement indicates installation problems that need immediate attention.
Conclusion
Proper handling and installation techniques protect your investment in quality 304H stainless steel tubing while ensuring safe, reliable operation for years to come. These practices might require additional time upfront, but they prevent costly repairs and dangerous failures down the road. Take the time to train your installation teams on these critical procedures and establish quality control checkpoints throughout the process. Your system’s performance and longevity depend on getting these fundamentals right from the beginning.
